EEC A - Panorama wood-burning stove model 214-3D left with 6.04 kW - Lots of cast iron!

The quality of our Model 214 3D is impressive in every respect. The design and function of these fireplaces are top-class. An absolutely unique design thanks to the large side glass pane.
This design highlight among kitchen stoves will delight you with its appearance: The expressive, beautiful fire panorama captures the moment in a seductive way, as the state-of-the-art and safe combustion chamber technology, along with the integrated air wash system, ensures a long-lasting clear view of the dancing flames. An optimal energy yield is achieved through separate primary and secondary air supplies. With an efficiency of 78.49%, this timeless and elegant kitchen stove is one of the most efficient in its class! This saves wood, protects the environment, and reduces combustion residues.

Cooking / Roasting / Baking with a wood stove

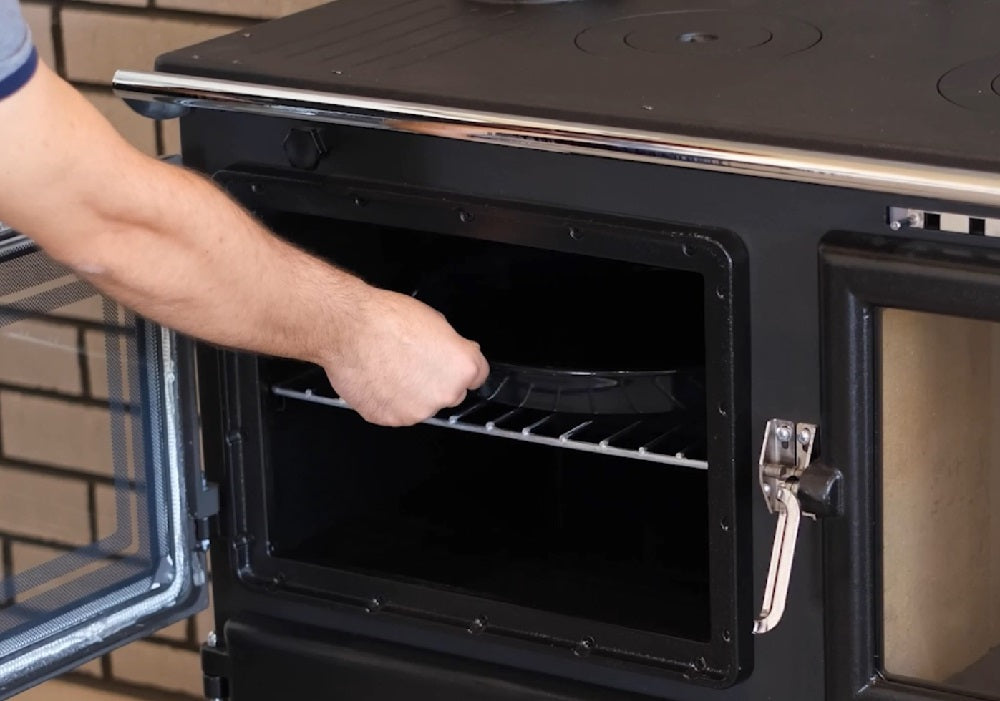

Cooking and heating at the same time - this challenge is solved in an elegant, practical, and efficient way: Thanks to a spacious, enameled oven compartment and a large cooking surface (cast iron), it is possible to cook or bake fully regardless of electricity or gas. A baking rack for the large oven compartment is included in the scope of delivery. With the built-in oven thermometer, you always have the optimal baking temperature in view.

Everything is possible; you can fry eggs on the stovetop, cook stews, heat up a tea kettle, or simply warm up or keep glühwein (mulled wine) warm for a winter party. In the oven compartment, you can bake delicious casseroles or, for example, pizza, bread, or rolls.
This fireplace meets the requirements for connection in Germany (BIMSCHV Level 2 and ECO-Design 2022 as well as the strict local standards in Regensburg, Stuttgart, and Munich) and is tested according to EN16510. A filter or other retrofits are therefore not necessary.

The spacious combustion chamber is lined with solid fireclay bricks.
The equipment also includes a practical ash drawer for easy removal of combustion residues. Its ash box is nicely large. A shaking grate allows combustion residues to be easily moved into the ash box.

The unit features a lighting flap (bypass damper). This flap makes it easier to ignite the fire, as the flue gases have a shorter path to the flue pipe connection. Once the fire is lit, the flap is closed, and the flue gases are directed around the oven compartment. This also allows you to regulate the temperature in the oven compartment effectively.

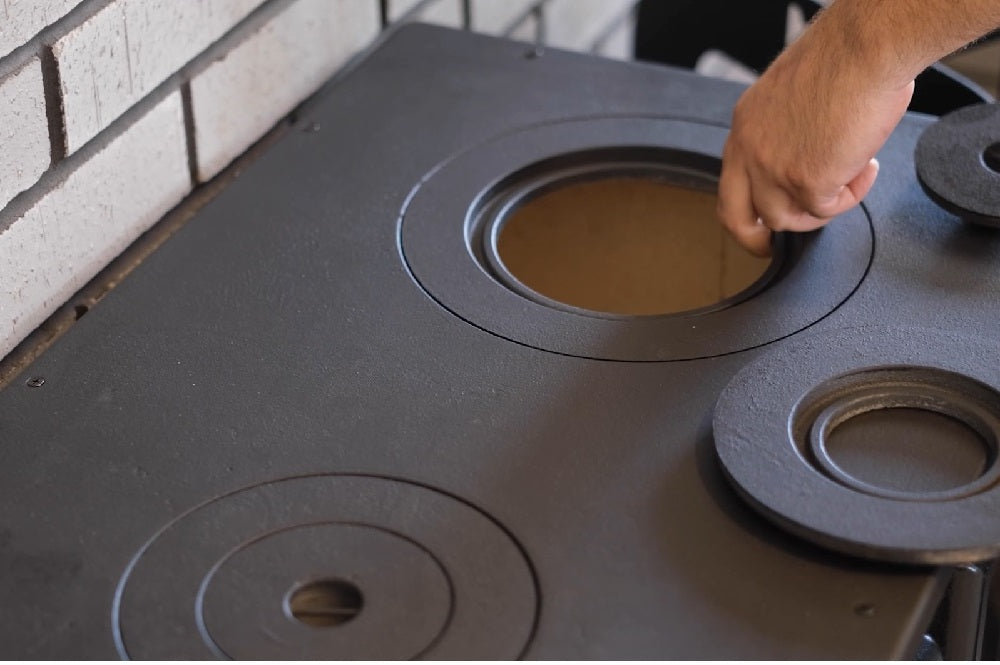

In addition to functionality, durability was also a priority. The stovetop is made of solid cast iron and features removable rings. This makes it ideal for different pot or pan sizes. By removing a ring in the stovetop, you can cook directly over the flame. In today's crisis-ridden times, it is perhaps not a bad idea to have a "Plan B." This way, you are independent of oil, gas, or electricity!

Elegant stainless steel door handles and a chrome rail (towel holder) complete the brilliant appearance. (No simple hard plastic handles like those from other manufacturers.)
The oven compartment and the 130 mm flue pipe connection are located at the top left. (It is also built in a right-hand version.)
The stove is not suitable for shared chimney flues (other fireplaces on the same chimney flue are not possible).

The decision for the right heating appliance is the fundamental prerequisite for feeling nice and cozy. However, the saying "spoiled for choice" applies here. With a brand-name stove from Caliskan, your search should be over, as it meets the demands for construction, aesthetics, and design.

Kitchen Wood Stove Model 214 3D with Side Glass, Left Version


This stove is also available with a wood drawer (Model 214 Box) or as a single-pane panorama version (Model 214) as well as a panorama version with a drawer (Model 214 3D Box).

You can find the corresponding offers in the shop.

Key data:
- Heavy, robust design with plenty of cast iron and welded construction (no cheap rivets)
- Most important components made of solid cast iron (e.g., doors, combustion grate, and stovetop)
- Durable, solid construction
- Elaborately sealed
- Heating, cooking, and baking without electricity or gas
- Large enameled oven compartment (width/depth/height approx. 390 x 390 x 280 mm) incl. baking rack and thermometer
- Ideal for baking a family pizza, baking bread or rolls
- Large combustion chamber made of solid fireclay (logs up to 46cm wide possible!)
- Large viewing window + side glass
- Good heat retention due to the solidity of the construction
- Black body
- Air wash system (cleanness of the glass over a long period)
- Solid stainless steel door handles
- Chrome rail / dish towel rail
- Large ash box ideal for continuous use of the stove
- Shaking grate
- Separate primary and secondary air and post-combustion of flue gases
- Possibility of cooking over an open fire due to a removable ring in the top plate
- 1st and 2nd stage of the BImSchV Germany and ECO-Design 2022, EN16510


Technical data:
- Nominal power: 6.04 kW
- Efficiency: 78.49%
- CO emission at 13% O2: 1347.54 mg/m³ (< 1500 mg/m³)
- Fine dust emission at 13% O2: 32.27 mg/m³
- NOx emission at 13% O2: 191.44 mg/m³
- OGC emission at 13% O2: 26.12 mg/m³
- Required chimney draft: 12.2 Pa
- Flue gas mass flow: 7.8 g/s
- Flue gas temperature: 213.9 ºС
- Flue pipe connection: 130 mm, top left
- Energy efficiency class: A
- Device dimensions:
Width = 850 mm
Depth = 520 mm
Height = 795 mm
- Oven dimensions approx.:
Width = 390 mm
Depth = 390 mm
Height = 280 mm
- Combustion chamber dimensions approx.:
Width = 240 mm
Depth = 360 mm
Height = 460 mm

- Combustion chamber opening approx.:
Width = 190 mm
Height = 270 mm

- Weight: approx. 117 kg

Safety distance to combustible components*:
Minimum distance, in mm
Side = 1200
Rear = 600
Front = 1200

* These distances only need to be maintained in a combustible situation, e.g., when installed in front of a wooden wall!


Scope of delivery: Stove without flue pipes and without pots and without tea kettle. Incl. grill rack and casserole dish in the oven compartment. Without grill rack for the combustion chamber (as shown in the picture and video).


This stove meets the requirements for connection in Germany (BIMSCHV Level 2 and ECO-Design 2022 as well as the strict local standards in Regensburg, Stuttgart, and Munich). A filter or other retrofits are therefore not necessary.
Please always speak with your local master chimney sweep before purchasing a fireplace. Have your chimney checked for suitability before installing the fireplace. Always observe the operating and installation instructions and maintain the required safety distances. Have the fireplace inspected by the district chimney sweep before lighting it for the first time.
